230.4V 96AH LiFePo4 Battery Pack For Home Energy Storage System

Brand Name : HUAXING

Model Number : HX20KWH

Certification : MSDS

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20 pks per day

Delivery Time : 25day

Packaging Details : Wood case packge

Nominal Voltage : 230.4V

Nominal Capacity : 96Ah

Battery Combination : 72S16P

Nominal Energy Capacity : 22118.4WH

Max. Charge Current : 96A

Max. Continuous Discharge Current : 96A

Total Weight : About 280kg

Dimensions(L*W*H) : 596*1982*1000（W*H*D）mm

Application : HESS,Telecom,Solar system

Installation : floor standing

Contact Now

230.4V 96AH LiFePo4 Battery Pack For Home Energy Storage System

High voltage 230.4V96AH LiFePo4 battery pack for home energy storage system

22KWH high voltage Energy Storage System Briefly introduction
1,Cell type:32700 3.2V6.0Ah LFP cell
2,Battery box:6 units battery box+ 1 BCU(Battery control unit)
3,Voltage/Capacity Each batery box is 38.4V 96AH(12S16P.6 units 38.4V 96AH connected in series to get 230.4V 96AH.The working voltage range is 180V-262.8V.The system total energy is 22.1184KWh.
4,Battery system total weight:about 280kg
NO. Items Parameter Remark
1 Battery Pack type 230.4V96Ah
2 System Energy 22.1184KWh
3 Max charge current 96A
4 Max discharge current 96A
5 Cycles life 2000 cycles 25℃±2℃；0.5C discharge and charge rate；80% DOD；
6 Cut off discharge voltage 180V 2.5V cut off per series
7 Max Charge voltage 262.8V
8 Charge and discharge efficiency ≥97%
9 IP grade IP54
10 Cooling way Nature cooling

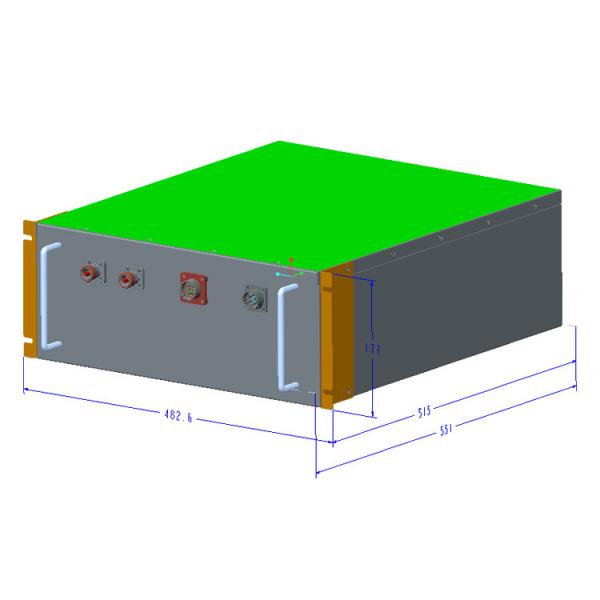

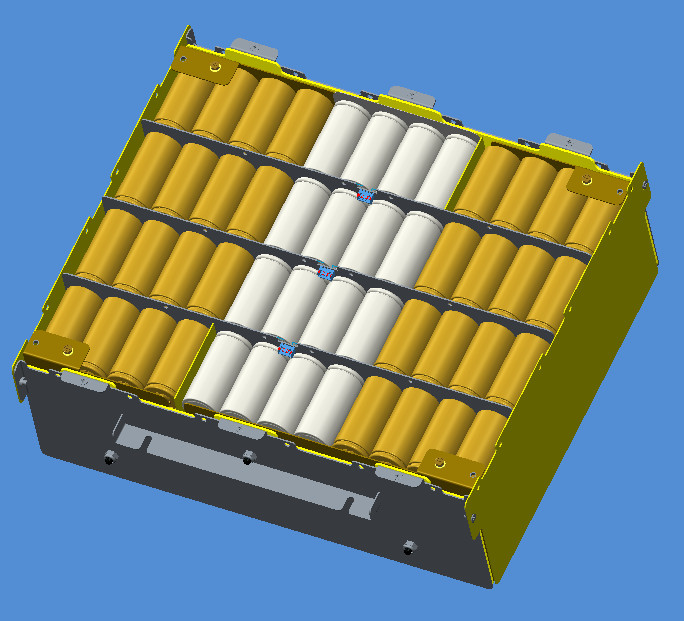

38.4V 96AH battery module

230.4V 96AH LiFePo4 Battery Pack For Home Energy Storage System

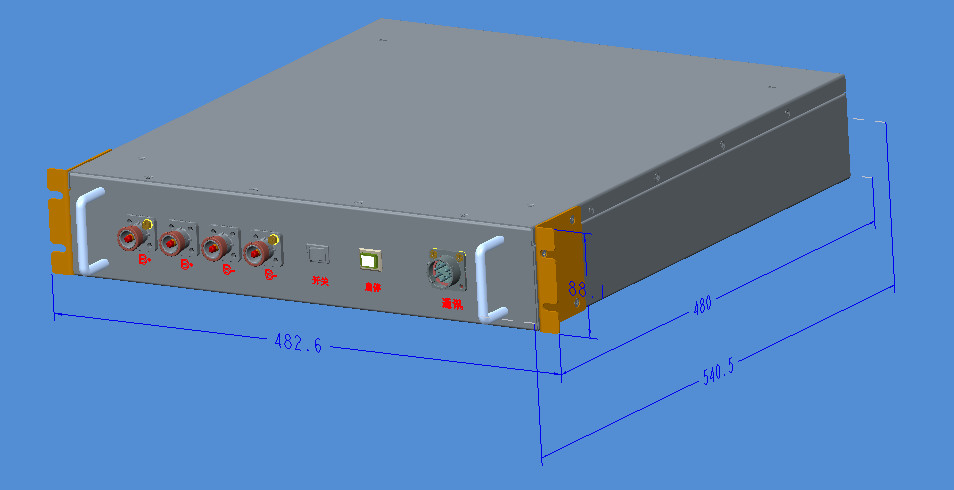

BCU dimension

BCU dimension:2U cabinet
482.6*88.1*480(W*H*D)mm

230.4V 96AH LiFePo4 Battery Pack For Home Energy Storage System

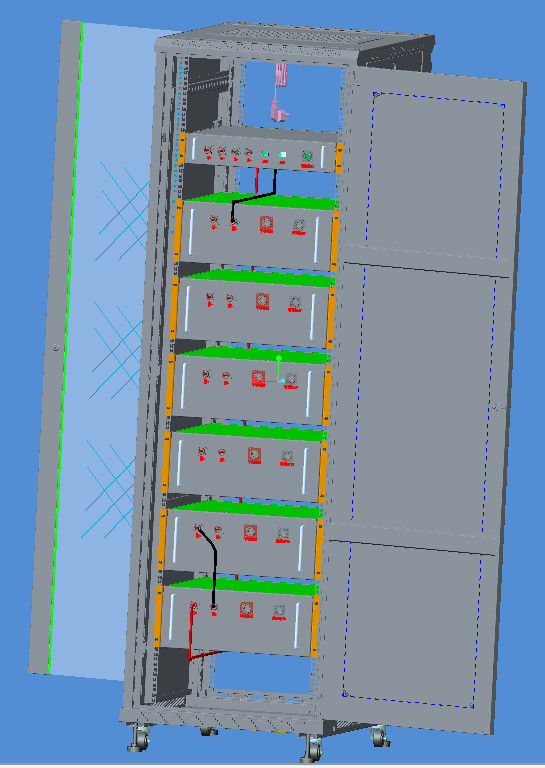

Cabine dimension

ESS diemnsion:
596*1982*1000(W*H*D)mm

230.4V 96AH LiFePo4 Battery Pack For Home Energy Storage System

Installation Location:

Consider the below points before selecting installation location:

1 There are no flammable or explosive materials

2. The floor is flat and level.

3 Install the system in a visible location so that user can read the LCD display parameter at any time.

4 The area is completely waterproof

5 Make sure there is 20 cm distance from the two side, 50 cm distance from bottom of the unit.

6 The ambient temperature is within the range from 0°C to 55°C.

7 The temperature and humidity are maintained at a constant level.

8 The installation areas shall avoid of direct sunlight

9 The distance from air outlet of inverter is more than 0.5 meters.

10 The distance from heat source is more than 2 meters.

11 There is minimal dust and dirt in the area.

230.4V 96AH LiFePo4 Battery Pack For Home Energy Storage System
